- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- Vertiv Geist
- Product Series
- rPDU
- Product Type
- PDU

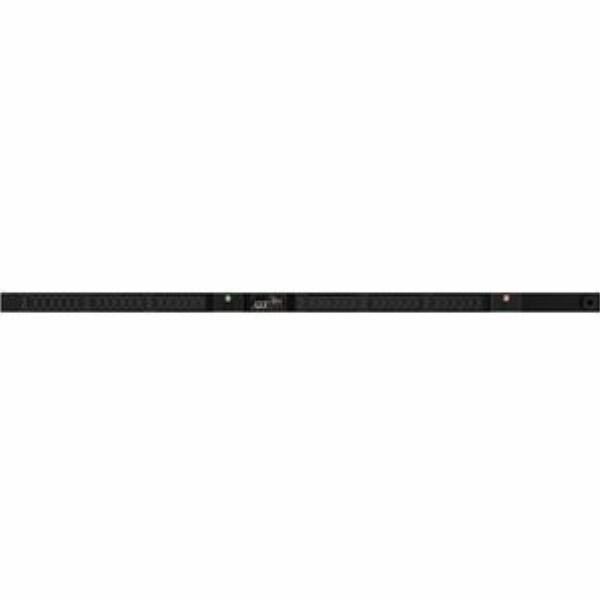

The Vertiv Geist 14240242 is a 32A, 230V, 0U monitored vertical rack power distribution unit (PDU). It has 36 IEC C13 outlets, 6 IEC C19 outlets, and a 2P+E (IP44) plug providing 7.3kW in power capacity. This Monitored Data Center rPDU provides you quick access to critical power usage information so you can evaluate energy usage trends and maximize uptime. The hot-swappable Interchangeable Monitoring Device displays current on the local LED display. Visible Light Communication technology allows you to view complete power usage data locally from a mobile device with the Vertiv rPDU Scanner app. Each rack mount PDU undergoes individual testing for functionality to ensure your network is powered by a reliable smart power strip. The unit comes with a three-year warranty that can be extended to five-years if registered within 120 days of purchase.
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- PDU Type
- Monitored
- Phase
- Single Phase
- Plug/Connector Type
- 2P+E (IP44)
- Plug/Connector Detail
- 1 x 2P+E (IP44)
- Receptacle Type
- IEC 60320 C19
- IEC 60320 C13
- Receptacle Detail
- 6 x IEC 60320 C19
- Protection Type
- Overcurrent Protection
- Power Description
- Input Voltage
- 230 V
- Input Voltage Range
- 200 V AC - 240 V AC
- Output Voltage
- 240 V AC
- Output Voltage Range
- 200 V AC - 240 V AC
- Power Rating (Watt)
- 7.30 kW
- Input Current
- 32 A
- Management
- Management
- CLI
- SNMP
- SSH
- SNMP v1
- SNMP v2
- SNMP v3
- LDAP
- TACACS+
- Radius
- Syslog
- JSON API
- Remote Outlet Switching
- No
- Interfaces/Ports
- Serial Port
- Yes
- Modem (RJ-11)
- No
- Modem (RJ-12)
- No
- Modem (RJ-22)
- No
- Network (RJ-45)
- Yes
- USB
- Yes
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Mounting Orientation
- Vertical/Toolless
- Mount Type
- Rack-mountable
- Form Factor
- Hot-swappable
- Rack Height
- 0U
- Cord Length
- 3 m
- Width
- 51 mm
- Depth
- 51 mm
- Length
- 1.8 m
- Miscellaneous
- Package Contents
- rPDU CP8853 42-Outlets PDU
- Vertical Mounting Bracket
- Energy Star
- No
- Country of Origin
- China
- TAA Compliant
- No
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
