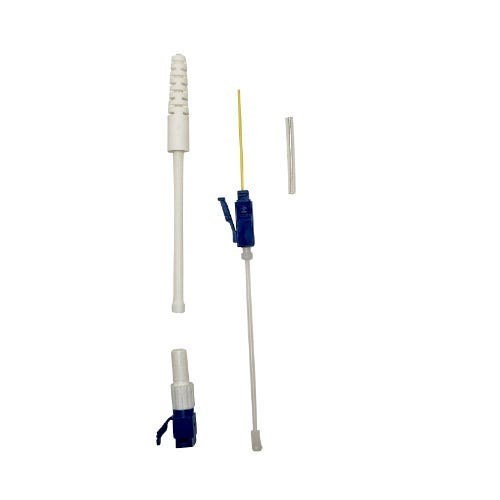

Achieve reliable, high-performance fibre terminations in the field with the LC Singlemode UPC Splice-On Connector. This innovative connector combines the precision of a fusion splice with the convenience of a pre-terminated connector, eliminating the need for epoxy, hand polishing, or crimping. Its design, featuring a factory-polished ferrule and a pre-cleaved fibre stub, ensures a quick, clean, and highly efficient installation process every time, dramatically reducing setup time and potential for error.
Engineered for excellence, this splice-on connector delivers superior optical performance with consistently low insertion loss and high return loss. This makes it an ideal solution for demanding applications, including Fibre to the Home (FTTH) networks, cable TV systems, and data centre installations. It provides a robust and stable connection that maintains signal integrity for long-term reliability.
The connector's versatility allows it to be used on 900µm buffered fibre and includes boots for terminating 2.0mm cables, providing flexibility for various field repair and installation scenarios. By simplifying the termination process without compromising on quality, this LC Splice-On Connector is an essential tool for any technician looking to streamline their workflow and deliver professional-grade results with confidence.
FEATURES
- Field-terminable for on-site applications
- Factory-polished ferrule eliminates hand polishing
- No epoxy or crimping required for installation
- Combines fusion splice reliability with connector simplicity
- Fast, easy, and reliable termination process
- Low insertion loss for optimal signal integrity
- High return loss performance
SPECIFICATIONS
- Connector Type: LC/UPC
- Fibre Type: Singlemode (9/125µm)
- Applicable Cable: 900µm buffered fibre, with boots for 2.0mm cable
- Insertion Loss (IL): Typical ≤0.2dB, Max ≤0.5dB
- Return Loss (RL): ≥55dB
- Tensile Strength: >30N
- Durability: ≤0.2dB typical change after 500 matings
- Operating Temperature: -40 to +85°C
WARRANTY
1-Year Limited Warranty
