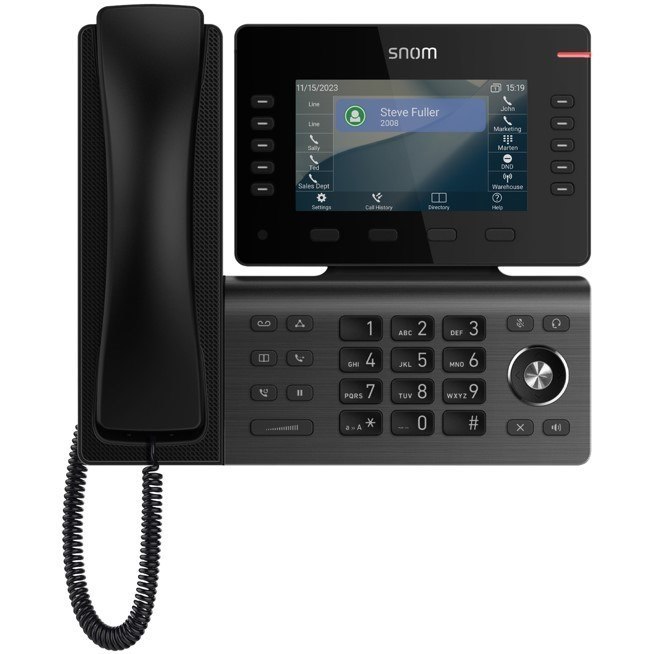

D815 Desk Telephone
Quick summary
5' (480x272) color LCD
10 (36) configurable self-labeling multicolor LED keys
2 USB ports
Elegant design
WLAN
Electronic Hook Switch (EHS) support for wireless headsets
D8C Expansion Module ready
2-port Gigabit Ethernet switch (RJ45)
3-year standard warranty
Phone Features
12 SIP identities / accounts
XML browser
Call lists for dialed, received, missed calls
Local directory with 1000 entries
Multiple language support
DTMF in-band / out-of-band / SIP-INFO
Interoperable with all major IP PBX platforms
Speed dialing
URL dialing
Local dial plan
Automatic redial on busy
Call completion (busy / unreachable)2
Caller identification
Call waiting
Call blocking (deny list)
Auto answer
Hold
Music on hold2
Blind and attended transfer
Call forwarding
3-way conferencing on the phone
Extension monitoring, call pickup2
Call park, call unpark2
Multicast paging
DND mode (do not disturb)
Keyboard lock
Client matter code (CMC)2
Audio/Codecs
G.711 A-law, u-law
G.722 (wideband)
G.726, G.729ab, GSM 6.10 (FR)
Built-in assignable ringtones
Comfort noise generator (CNG)
Voice activity detection (VAD)
Setup
Configurable through web interface
Provisioning
Automatic loading of settings via HTTP / HTTPS / TFTP
DHCP Options 66/67
Secure Redirection and Provisioning Service (SRAPS) support
Remote management via TR-069 / TR-111
Protocols
SIP (RFC3261)
DHCP, NTP
HTTP / HTTPS / TFTP
LDAP (Directory)
Dual Stack IPv4 / IPv6
User Interface
Localization (language, time, dial tone)
Red LED for call indication / message waiting
4 context sensitive keys
10 programmable line / function keys with multicolor LEDs
Dedicated keys for: Message, call history, transfer, hold, conference
Audio keys with LED indication: Mute, speakerphone, headset
Volume key
5-way navigation key
Cancel key
Menu-driven user interface
