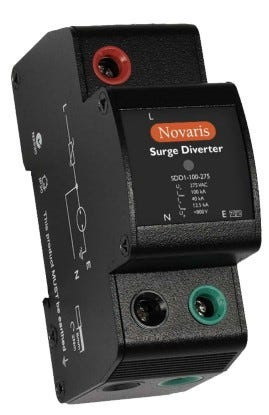

Protect your valuable electrical equipment from damaging power surges with the Novaris SDD1-100-275 DINsafe Surge Diverter. Designed for use in distribution boards or as point of entry protection in residential and light industrial applications, this single-phase surge protector offers comprehensive all-mode protection (L-N, L-PE, N-PE). Its robust metal enclosure ensures safety by preventing fire or explosion risks in the event of sustained overvoltage. The integrated thermal sensing mechanism provides a warning against overheating without interrupting protection, while the LED status indicator allows for easy monitoring of the device's health and power status.
FEATURES
- Single Phase Protection
- Maximum Continuous Voltage (Uc): 275VAC
- Maximum Discharge Current (Imax): 100kA
- All Mode Protection (L-N, L-PE, N-PE)
- Thermal Sensing for Overvoltage Warning
- LED Status Indication
- Safe Metal Enclosure
- DIN Rail Mountable
SPECIFICATIONS
- Connection Type: Shunt
- Nominal Voltage (U0): 230VAC/50Hz
- Voltage Protection Level (Up) @ 3kA (8/20µs): <800V
- Response Time (tA): <5ns
- Earth Leakage Current: <10µA
- Maximum Backup Fuse (gG): 63A
- Operating Temperature: -40 to +70°C
- Humidity: 5 to 95% non-condensing
- Terminal Capacity (Power): 16mm²
- Terminal Screw Torque (Power): 1.0Nm
- Environmental Protection: IP20
- Mounting: TS35 DIN Rail
- Enclosure Material: Metal
- Weight: 120g
- Dimensions (Width x Height x Depth): 18mm x 95mm x 70mm
WARRANTY
1-Year Limited Warranty
