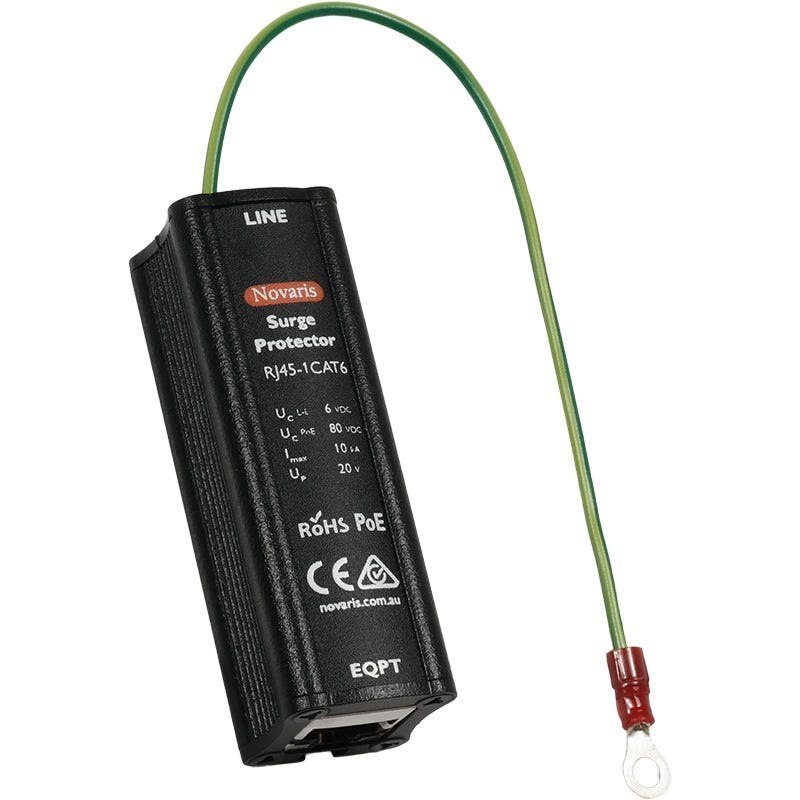

The Novaris RJ45-1CAT6 is a high-performance surge protector designed to safeguard your valuable network equipment from damaging electrical surges and lightning strikes. Engineered for twisted pair Ethernet systems, this robust protector supports CAT5, CAT6, and CAT6A cabling standards, ensuring compatibility with a wide range of network infrastructure. It's also compliant with Power over Ethernet (PoE) standards, capable of handling up to 160W on a 4-pair system.
Featuring a series connection type, the RJ45-1CAT6 utilises a combination of rugged Gas Discharge Tube (GDT) technology for large common mode surges (up to 10kA) and fine-grain silicon-based secondary protection for exceptional equipment safety. Its metal body and shield pass-through connectors ensure uninterrupted shielded network spans, crucial for maintaining signal integrity and reducing electromagnetic interference. This single-port protector is an essential component for protecting individual network devices in both residential and commercial environments across Australia.
FEATURES
- Protects Ethernet systems against surges and lightning strikes
- Supports CAT5, CAT6, and CAT6A cabling standards
- Compatible with PoE and High Power PoE up to 160W
- Robust 10kA Gas Discharge Tube (GDT) for common mode surge protection
- Fine-grain silicon secondary protection for enhanced equipment safety
- Metal body with shield pass-through connectors for uninterrupted shielded networks
- Compact single-port design
- Suitable for Gigabit/1000BaseT network speeds
SPECIFICATIONS
- Connection Type: Series
- Number of Lines: 4 pair & shield
- Maximum Continuous Voltage (DC): 6V
- Maximum Continuous Voltage (AC): 4V
- Maximum Load Current: 1A
- Maximum PoE Voltage: 80VDC
- Maximum Discharge Current (8/20µs): 5kA (10kA common mode)
- Maximum Discharge Current (10/350µs): 1kA (2kA common mode)
- Impulse Durability C2 (10x8/20µs): 1.5kA
- Impulse Durability D1 (2x10/350µs): 0.5kA
- Voltage Protection Level @ 1kV/µs (L-L): <0.02kV
- Voltage Protection Level @ 1kV/µs (L-PE): <0.35kV
- Line Resistance: 0.1Ω
- Line Inductance: 0.2µH
- Insertion Loss @ 150Ω: <0.1dB
- -3dB Frequency @ 150Ω: >350MHz
- Degree of Protection: IP20
- Mounting Type: Rack
- Operational Temperature Range: -40°C to 70°C
- Terminal Type: RJ45 Socket
- Dimensions: 27mm (W) x 28mm (H) x 80mm (L)
- Weight: 0.2kg
WARRANTY
1-Year Limited Warranty
