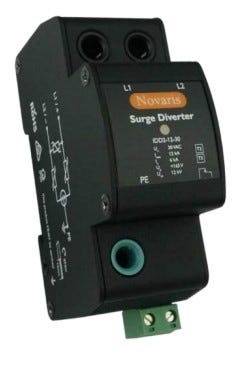

Protect your sensitive electronic equipment from damaging power surges with the Novaris IDD2-12-30 Isolated Surge Diverter. Designed for two-phase, balanced AC power feeds and DC supplies, this Type 2 surge protection device offers both common and transverse mode protection. Its isolated earth reference, achieved through a gas discharge tube, ensures no earth leakage current, enhancing safety and reliability. Ideal for industrial and commercial applications across Australia, the IDD2-12-30 provides a robust defence against voltage spikes.

FEATURES

• Provides surge protection for two-phase AC and DC power feeds
• Offers both common and transverse mode protection
• Features an isolated earth reference with no earth leakage current (<10μA)
• LED indicator for power status and thermal overload
• Passive alarm contact for remote monitoring
• Safe, all-metal enclosure
• DIN rail mountable (TS35)

SPECIFICATIONS

• Connection Type: Shunt
• Modes of Protection: L-L, L-PE
• Nominal Voltage (AC): 30VAC
• Nominal Voltage (DC): 24VDC
• Maximum Continuous Voltage (AC): 30VAC
• Maximum Continuous Voltage (DC): 36VDC
• Maximum Discharge Current (L-L, 8/20μs): 12kA
• Nominal Discharge Current (L-L, 8/20μs): 6kA
• Voltage Protection Level (L-L, 3kA 8/20μs): <165V
• Maximum Discharge Current (L-PE, 8/20μs): 6kA
• Nominal Discharge Current (L-PE, 8/20μs): 3kA
• Voltage Protection Level (L-PE, 3kA 8/20μs): <240V
• Voltage Protection Level (L-PE, 1kV/μs): <130V
• Response Time: <5ns
• Earth Leakage Current: <10μA
• Alarm Isolation: 4kV
• Operating Temperature: -40°C to 70°C
• Operating Humidity: 5% to 95%
• Enclosure Material: Aluminium
• Environmental Rating: IP20
• Terminal Capacity (Power): 16mm²
• Terminal Screw Torque (Power): 2Nm
• Terminal Capacity (Alarms): 2.5mm²
• Terminal Screw Torque (Alarms): 0.5Nm
• Dimensions: 95mm (Length) x 36mm (Width) x 70mm (Height)
• Weight: 230g
• Product Code: IDD2-12-30

WARRANTY

1-Year Limited Warranty
