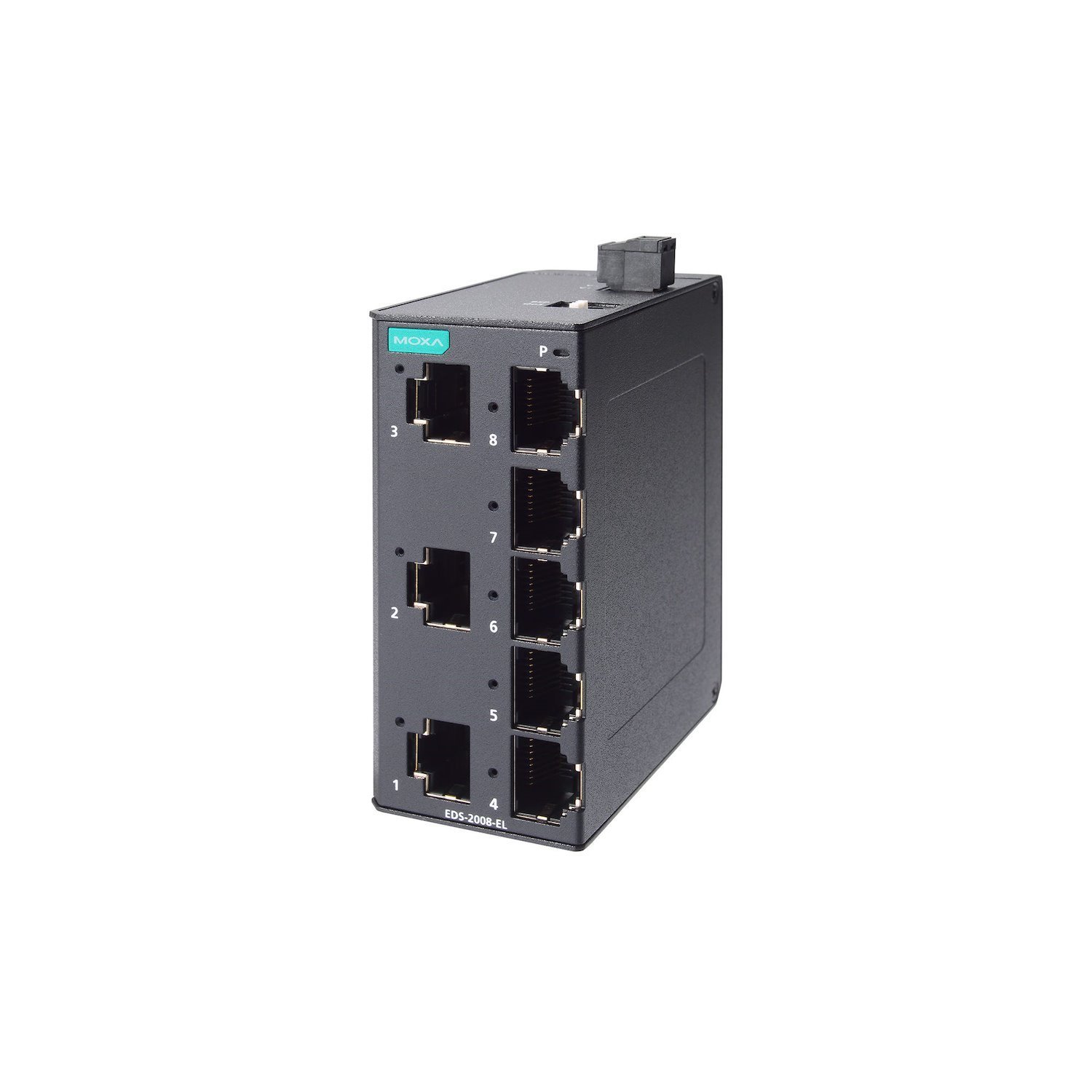

The Moxa EDS-2008-EL is an entry-level unmanaged industrial Ethernet switch designed for ultimate reliability and simplicity in demanding environments. With eight 10/100BaseT(X) copper ports, it provides a straightforward solution for expanding your industrial network. Its rugged, IP40-rated metal housing ensures it can withstand the rigours of factory floors and industrial cabinets, while its compact, palm-sized design allows for easy installation on a DIN-rail, even in space-limited areas.
Engineered for versatility, the EDS-2008-EL features user-friendly DIP switches on the outer panel. These switches allow for the simple activation of Quality of Service (QoS) to prioritise critical data packets during heavy traffic, and Broadcast Storm Protection (BSP) to prevent network disruptions. This functionality provides a level of control typically not found in unmanaged switches, ensuring your network remains stable and efficient without complex configuration.
The EDS-2008-EL is also compliant with PROFINET Conformance Class A, making it an ideal choice for automation and motion control applications. It supports a wide 12/24/48 VDC power input and boasts high-level EMI/EMC capability, guaranteeing dependable performance. Having passed a 100% burn-in test, this switch is built to function reliably from the moment it's deployed, offering a truly plug-and-play industrial connectivity solution.
FEATURES
- 8 x 10/100BaseT(X) RJ45 ports
- Compact, IP40-rated metal housing for industrial durability
- Quality of Service (QoS) supported for processing critical data
- Broadcast Storm Protection (BSP) to prevent network flooding
- DIP switch configuration for easy function control
- Wide operating temperature range from -10 to 60°C
- PROFINET Conformance Class A compliant
- Standard DIN-rail mounting
SPECIFICATIONS
- MAC Table Size: 2K
- Packet Buffer Size: 768kbits
- Processing Type: Store and Forward
- Input Voltage: 12/24/48 VDC
- Operating Voltage: 9.6 to 60VDC
- Input Current: 0.052A @ 24VDC
- Connection: 1 removable 2-contact terminal block
- Protections: Overload Current Protection, Reverse Polarity Protection
- Housing: Metal
- IP Rating: IP40
- Dimensions: 36 x 81 x 65mm
- Weight: 169g
- Installation: DIN-rail mounting
- Operating Temperature: -10 to 60°C
- MTBF: 3,696,394 hrs
- Standards: IEEE 802.3, 802.3u, 802.3x, 802.1p
WARRANTY
5-Year Limited Warranty
