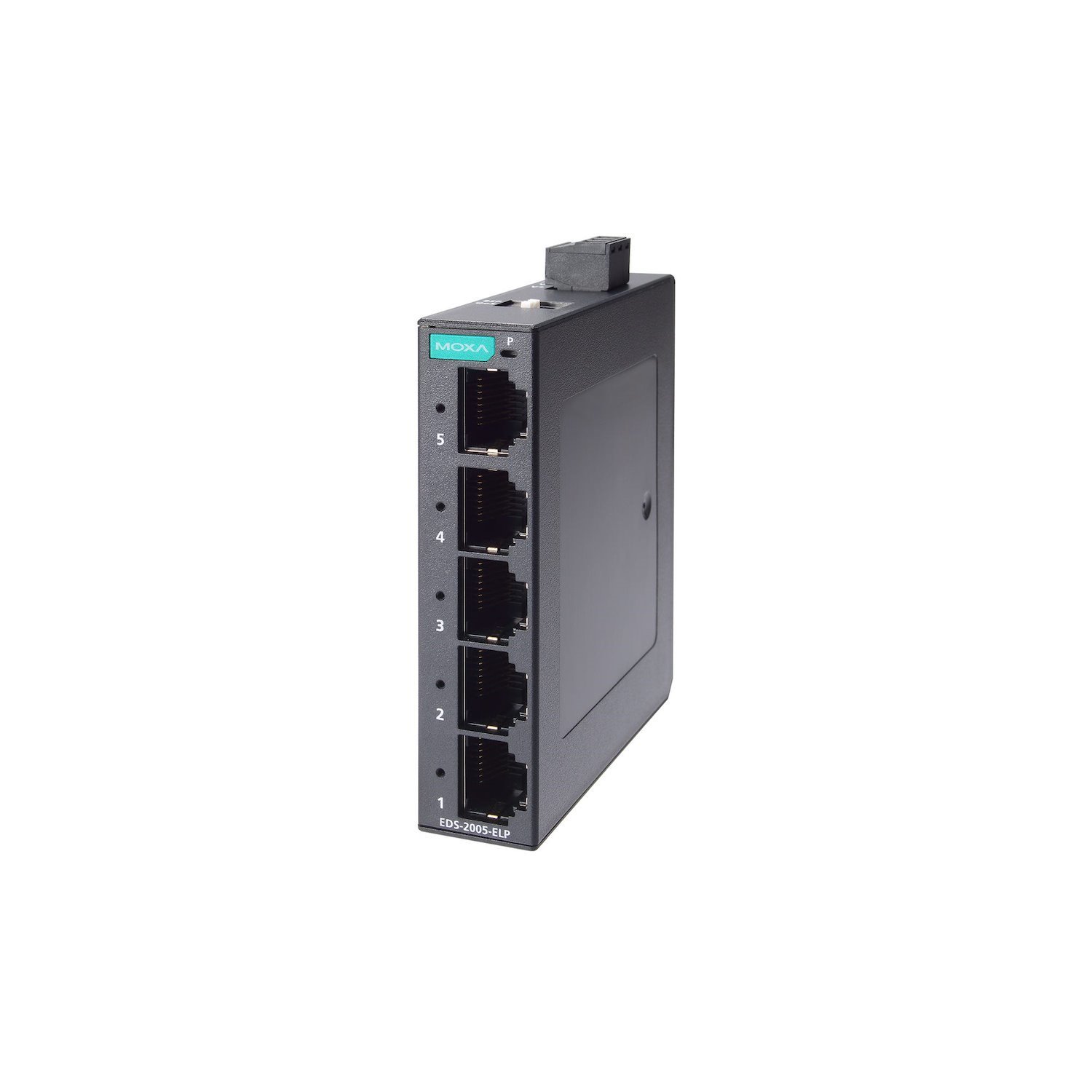

The Moxa EDS-2005-ELP is a compact, entry-level industrial Ethernet switch designed for simplicity and reliability in demanding environments. With five 10/100BaseT(X) copper ports, it provides a straightforward solution for connecting industrial devices. Housed in a durable, IP40-rated plastic enclosure, this switch is ideal for installation in space-constrained control cabinets and supports standard DIN-rail mounting for ultimate convenience.
Engineered for versatility, the EDS-2005-ELP allows users to fine-tune network performance using external DIP switches. You can easily enable or disable Quality of Service (QoS) to prioritise critical data packets during heavy traffic and activate Broadcast Storm Protection (BSP) to prevent network flooding. This user-friendly control ensures stable and efficient network operation without complex software configuration.
Built to withstand industrial conditions, the switch supports a wide 12/24/48VDC power input and features both reverse polarity and overload current protection. It has undergone a 100% burn-in test to guarantee its reliability and is rated for operation in temperatures ranging from -10 to 60°C. Its high level of EMI/EMC capability ensures dependable performance even in electrically noisy environments.
As a PROFINET Conformance Class A (CC-A) compliant device, the EDS-2005-ELP is perfectly suited for integration into automation networks. This certification ensures seamless interoperability and communication within PROFINET systems, making it a reliable choice for manufacturing and process control applications that require a simple, robust, and certified connectivity solution.
FEATURES
- 5 x 10/100BaseT(X) RJ45 Ports
- Compact IP40-rated plastic housing
- User-configurable Quality of Service (QoS) via DIP switch
- User-configurable Broadcast Storm Protection (BSP) via DIP switch
- Supports DIN-rail or optional wall mounting
- Wide operating temperature range (-10 to 60°C)
- PROFINET Conformance Class A compliant
SPECIFICATIONS
- MAC Table Size: 2K
- Packet Buffer Size: 768 kbits
- Processing Type: Store and Forward
- Input Voltage: 12/24/48VDC
- Operating Voltage: 9.6 to 60VDC
- Input Current: 0.039A @ 24VDC
- Power Connection: 1 removable 3-contact terminal block
- Housing: Plastic
- Dimensions: 19mm x 81mm x 65mm
- Weight: 74g
- Installation: DIN-rail mounting
- MTBF: 5,249,061 hrs
- Safety Standards: UL 61010-2-201, EN 62368-1
- EMC Standards: EN 55032/35, EN 61000-6-2/-6-4
WARRANTY
5-Year Limited Warranty
