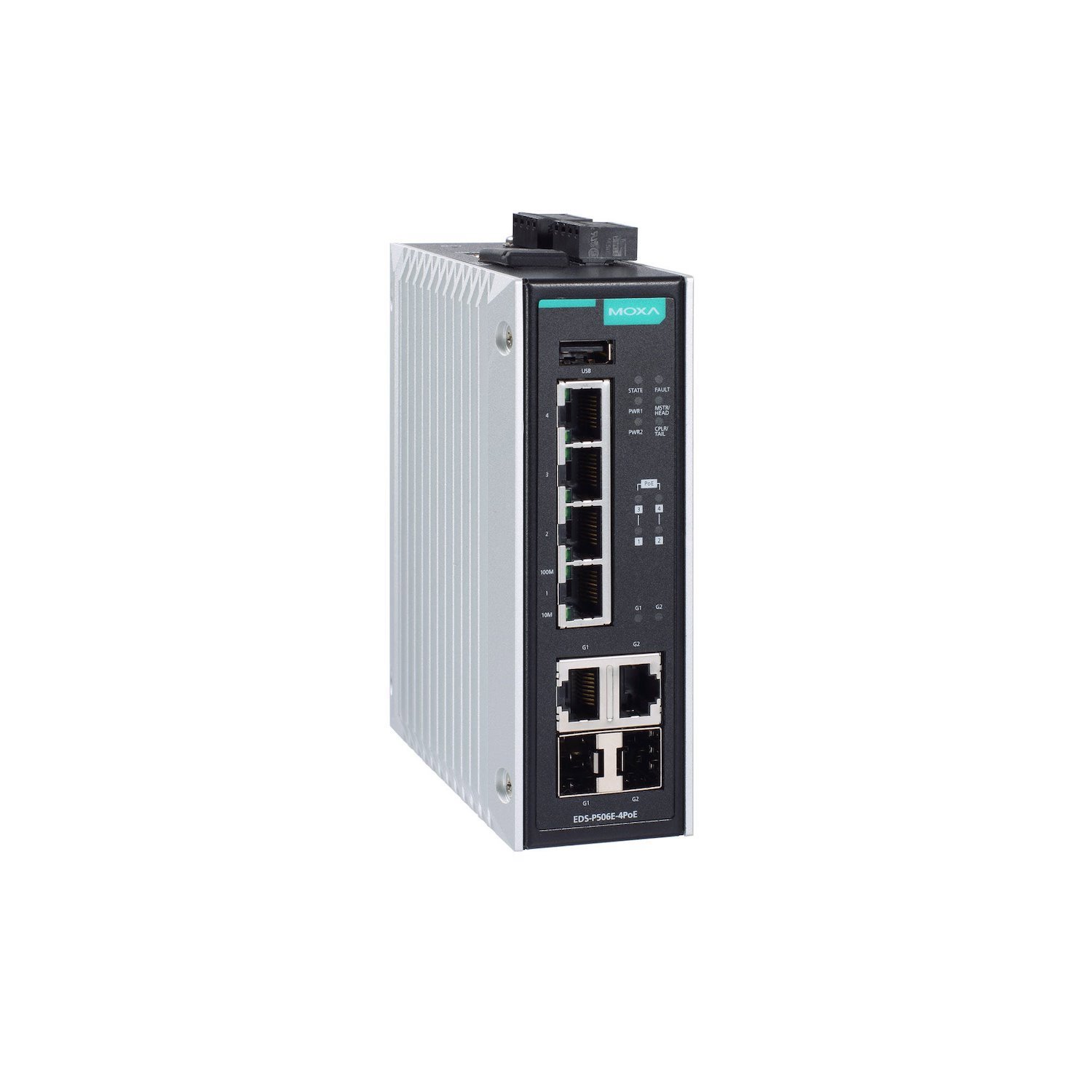

The Moxa EDS-P506E-4PoE-2GTXSFP is a rugged and versatile managed Ethernet switch, engineered for demanding industrial applications. It features four 10/100BaseT(X) PoE+ ports compliant with IEEE 802.3af/at standards, alongside two flexible Gigabit combo ports for high-bandwidth fibre or copper uplinks. This switch is designed to deliver robust and reliable network connectivity, especially in environments where power and space are critical concerns. Its intelligent PoE functions and comprehensive management features ensure optimal performance and easy integration into existing industrial control systems.
Powering high-demand devices is effortless with the EDS-P506E-4PoE-2GTXSFP. Each of its four PoE+ ports can supply up to 60W of power, making it ideal for power-hungry equipment such as PTZ surveillance cameras, high-performance wireless access points, or industrial IP phones. The switch supports a wide-range 12/24/48VDC redundant dual power input, providing deployment flexibility and ensuring operational continuity. Smart PoE management allows for remote diagnosis, power scheduling, and automatic failure recovery of connected devices.
Built to withstand harsh conditions, the EDS-P506E-4PoE-2GTXSFP features a durable IP40-rated metal housing and offers 4kV surge protection for system stability. It supports a wide range of network redundancy protocols, including Moxa's Turbo Ring and Turbo Chain for ultra-fast network recovery. Advanced management capabilities are provided through a command-line interface (CLI) and support for industrial protocols like EtherNet/IP, PROFINET, and Modbus TCP, making it a powerful solution for factory automation, intelligent transportation systems, and critical infrastructure monitoring.
FEATURES
- 4x 10/100BaseT(X) PoE+ ports with IEEE 802.3af/at compliance
- High power output of up to 60W per PoE port
- 2x Gigabit combo ports for high-bandwidth copper or SFP fibre uplinks
- Wide-range 12/24/48VDC redundant dual power inputs for flexible deployment
- Smart PoE functions for remote device diagnosis and failure recovery
- Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for industrial integration
- Turbo Ring and Turbo Chain for fast network redundancy (recovery time < 20ms)
- 4kV surge protection for system reliability in harsh environments
- IP40-rated metal housing with DIN-rail and optional wall mounting
SPECIFICATIONS
- PoE Ports: 4x 10/100BaseT(X) RJ45
- Combo Ports: 2x 10/100/1000BaseT(X) or 100/1000BaseSFP+
- Input Voltage: 12/24/48VDC (Redundant dual inputs)
- Operating Voltage: 12 to 57VDC
- Max. PoE Power Output per Port: 60W
- Total PoE Power Budget: 180W (@ 48VDC input)
- Power Consumption (without PDs): 18.96W
- MAC Table Size: 8K
- Packet Buffer Size: 12Mbits
- Housing: Metal
- IP Rating: IP40
- Dimensions: 49.1mm x 135mm x 116mm
- Weight: 910g
- Installation: DIN-rail mounting, Wall mounting (optional kit)
- Operating Temperature: -10 to 60°C
- Standards: IEEE 802.3af/at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, UL 61010-2-201, EN 50121-4
WARRANTY
5-Year Limited Warranty
