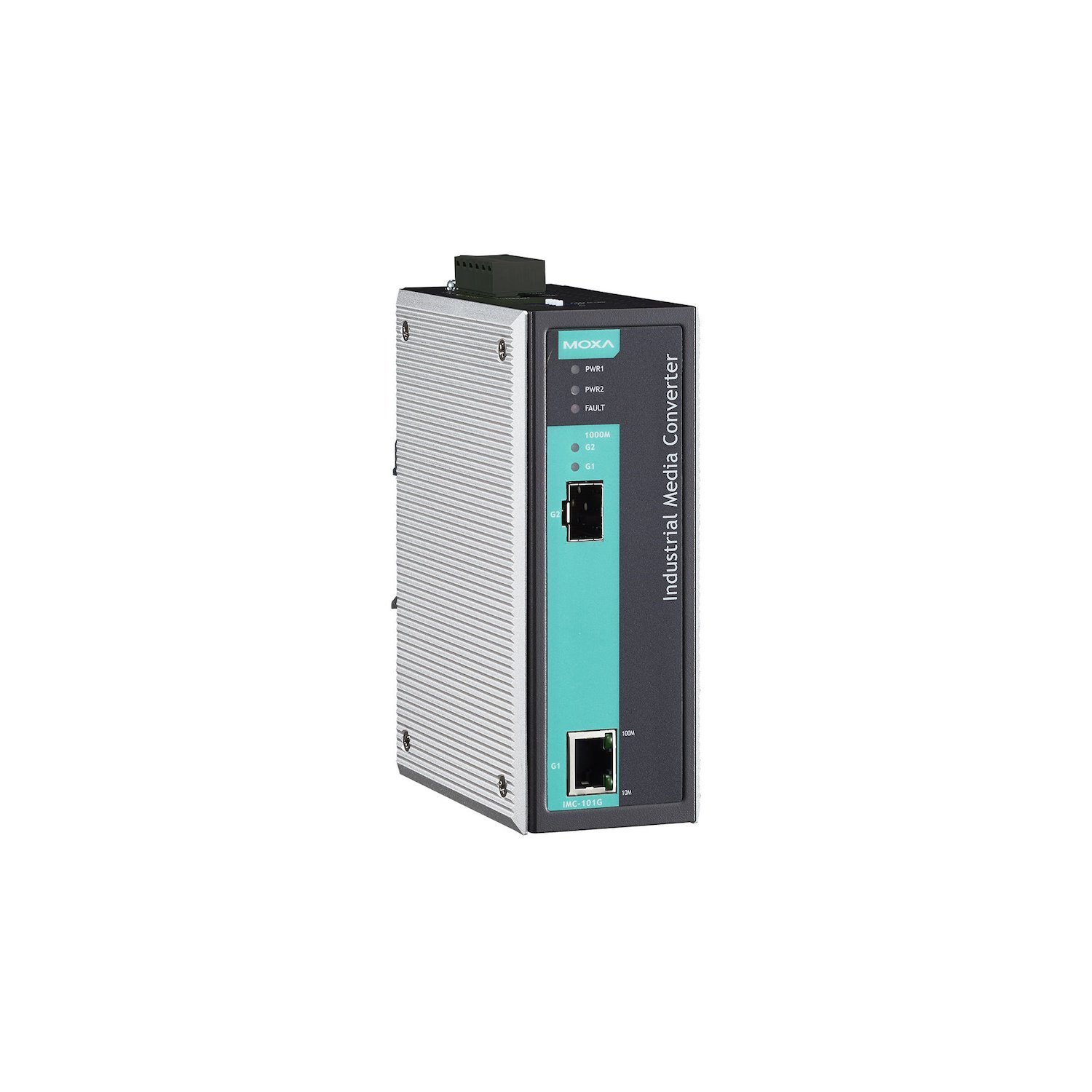

The Moxa IMC-101G is an industrial-grade media converter engineered to deliver highly reliable and stable conversion between 10/100/1000BaseT(X) copper and 1000Base-X fibre optic networks. Designed specifically for harsh industrial environments, this device ensures your critical data communications remain seamless and uninterrupted. Its robust metal housing and DIN-rail mounting capability allow for secure and straightforward installation inside control cabinets, making it an excellent choice for factory automation, intelligent transportation systems, and other demanding industrial applications.
Equipped with a versatile SFP slot, the IMC-101G offers exceptional flexibility, allowing you to choose from a wide range of SFP modules to meet the specific distance and connectivity requirements of your network. This modular design future-proofs your infrastructure, enabling easy upgrades and modifications as your network evolves. The converter supports Gigabit speeds, ensuring high-bandwidth data transmission without bottlenecks, which is crucial for modern automation processes and high-resolution surveillance systems.
To maximise operational uptime and simplify network diagnostics, the IMC-101G incorporates advanced features such as Link Fault Pass-Through (LFPT). This function actively monitors both the copper and fibre connections, propagating link failures from one side to the other to ensure that network switches can detect the fault and reroute traffic accordingly. Furthermore, the unit is equipped with redundant 12 to 48VDC power inputs, providing a failsafe power source to keep your applications running continuously even if one power supply fails.
Built for resilience, every IMC-101G converter undergoes a 100% burn-in test to guarantee its performance under demanding conditions. It features a relay output that can be configured to trigger a warning alarm in the event of a power failure or port break, enabling maintenance crews to respond immediately and prevent potential damage or data loss. With a standard operating temperature range of 0 to 60°C and a rugged design, the Moxa IMC-101G is the definitive solution for dependable Gigabit Ethernet-to-fibre conversion in any industrial setting.
FEATURES
- Converts between 10/100/1000BaseT(X) and 1000BaseSFP
- Flexible SFP slot for customisable fibre optic connectivity
- Link Fault Pass-Through (LFPT) for enhanced network troubleshooting
- Redundant 12 to 48VDC power inputs for increased reliability
- Relay output alarm for power failure and port break alerts
- Designed for hazardous locations (Class 1 Div. 2/Zone 2)
- Rugged DIN-rail mountable metal housing
SPECIFICATIONS
- RJ45 Ports: 1x 10/100/1000BaseT(X)
- Fibre Ports: 1x 1000BaseSFP Slot
- Input Voltage: 12 to 48VDC
- Input Current: 200mA (max) @ 12VDC
- Power Connector: Terminal block
- Housing: Metal
- Dimensions: 53.6mm x 135mm x 105mm
- Weight: 630g
- Installation: DIN-rail mounting
- Operating Temperature: 0 to 60°C
- Storage Temperature: -40 to 85°C
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- MTBF: 500,540 hrs
WARRANTY
5-Year Limited Warranty
