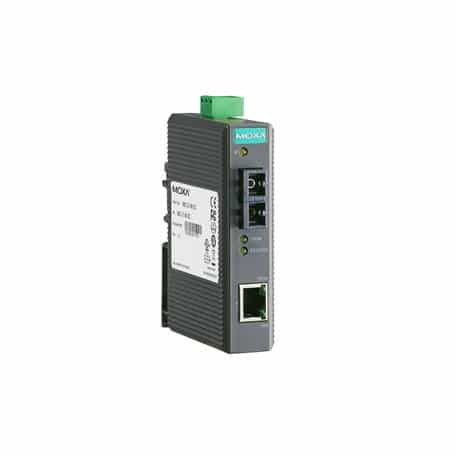

The Moxa IMC-21-S-SC is an entry-level industrial media converter designed to provide a reliable and cost-effective solution for extending your 10/100BaseT(X) Ethernet networks over long distances. It seamlessly converts copper Ethernet to 100BaseFX single-mode fibre optic, enabling data transmission up to an impressive 40km. This makes it perfect for connecting devices in large-scale industrial environments where standard copper cabling falls short.
Engineered for stability in harsh conditions, the IMC-21-S-SC operates reliably across a wide temperature range of -10 to 60°C. Its rugged hardware design ensures your critical Ethernet equipment can withstand demanding industrial applications. The converter supports a flexible 12 to 48VDC power input and features overload current protection, adding a layer of safety to your installation.
Installation and configuration are made simple with its compact, DIN-rail mountable design and easy-to-use DIP switches. These switches allow for manual configuration of speed and duplex settings to match your specific network requirements. For enhanced network troubleshooting, the device also includes a Link Fault Pass-Through (LFPT) feature, which helps to quickly identify and resolve link failures between the copper and fibre ports.
FEATURES
- Converts 10/100BaseT(X) Ethernet to 100BaseFX single-mode fibre
- Extends network communication up to 40km
- Link Fault Pass-Through (LFPT) for easy network troubleshooting
- DIP switches for selecting FDX/HDX/10/100/Auto/Force modes
- Wide operating temperature range from -10 to 60°C
- Supports 12 to 48VDC power input
- Easy installation with DIN-rail mounting
- IP30-rated plastic housing
SPECIFICATIONS
- RJ45 Port: 1x 10/100BaseT(X)
- Fibre Port: 1x 100BaseFX (single-mode SC connector)
- Fibre Cable Type: G.652
- Wavelength: 1310nm
- Magnetic Isolation Protection: 1.5kV
- Input Voltage: 12 to 48VDC
- Max Input Current: 0.271A
- Overload Current Protection: Supported
- Housing: Plastic
- IP Rating: IP30
- Dimensions: 25mm x 109mm x 97mm
- Weight: 125g
- Installation: DIN-rail mounting
- Operating Temperature: -10 to 60°C
- Storage Temperature: -40 to 70°C
- Ambient Relative Humidity: 5 to 95% (non-condensing)
WARRANTY
5-Year Limited Warranty
