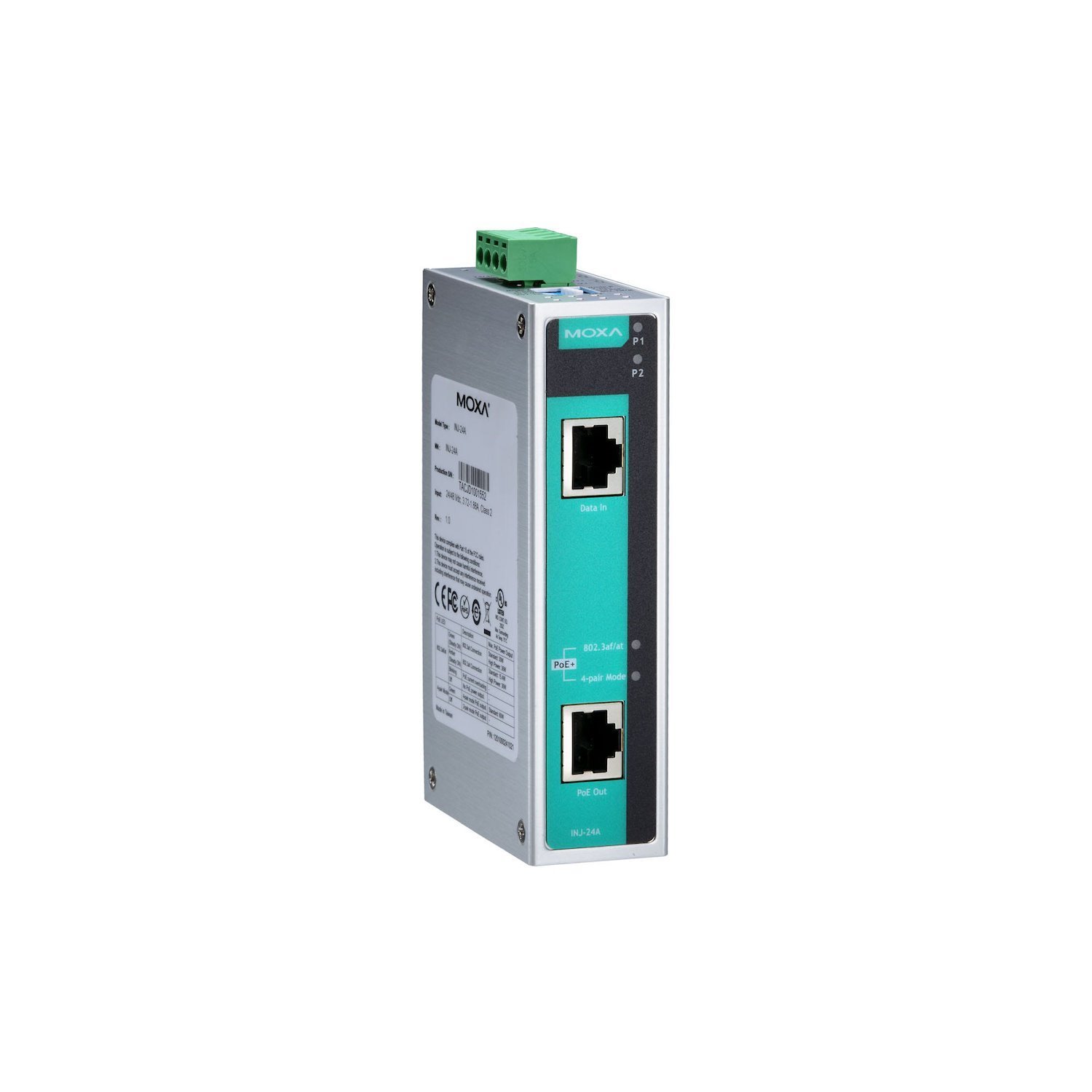

The Moxa INJ-24A is a high-power Gigabit PoE+ injector designed to reliably power demanding devices in industrial settings. It seamlessly combines data and power over a single Ethernet cable, delivering up to 60W—twice the output of standard PoE+ injectors. This makes it the perfect solution for power-hungry equipment such as PTZ cameras, high-performance wireless access points, and other advanced network devices that require a robust power source.
Engineered for operational resilience, the INJ-24A features a built-in 24/48VDC booster that supports dual power inputs for redundancy, ensuring your critical systems remain online. For ultimate installation flexibility, a simple DIP switch allows you to select between PoE Mode A and Mode B pinouts, guaranteeing compatibility with a wide range of powered devices without complex configuration.
Built to withstand challenging industrial environments, this injector boasts 3kV surge resistance to protect against electrical disturbances. The durable IP30-rated metal housing and a standard operating temperature range of 0 to 60°C ensure dependable performance. With its straightforward DIN-rail mounting and clear LED indicators for PoE management, the INJ-24A simplifies network upgrades and deployments.
FEATURES
- Delivers up to 60W in high-power mode for demanding devices
- Built-in 24/48VDC booster for redundant dual power inputs
- DIP switch and LED indicator for easy PoE configuration and management
- Selectable Mode A and Mode B PoE pinouts for flexible installation
- 3kV surge resistance for protection in harsh electrical environments
- Standard operating temperature range of 0 to 60°C
- DIN-rail mountable with an optional wall mount kit
SPECIFICATIONS
- Ethernet Ports: 1x 10/100/1000BaseT(X) RJ45
- PoE Ports: 1x 10/100/1000BaseT(X) RJ45
- PoE Standards: IEEE 802.3af/at
- Power Budget: Max. 60W
- Input Voltage: 24/48VDC
- Operating Voltage: 22 to 57VDC
- Max Power Consumption: 5.29W (without PD load)
- Housing: Metal
- IP Rating: IP30
- Dimensions: 30mm x 115mm x 78.8mm
- Weight: 245g
- Safety Standards: UL 508, EN 62368-1
WARRANTY
5-Year Limited Warranty
