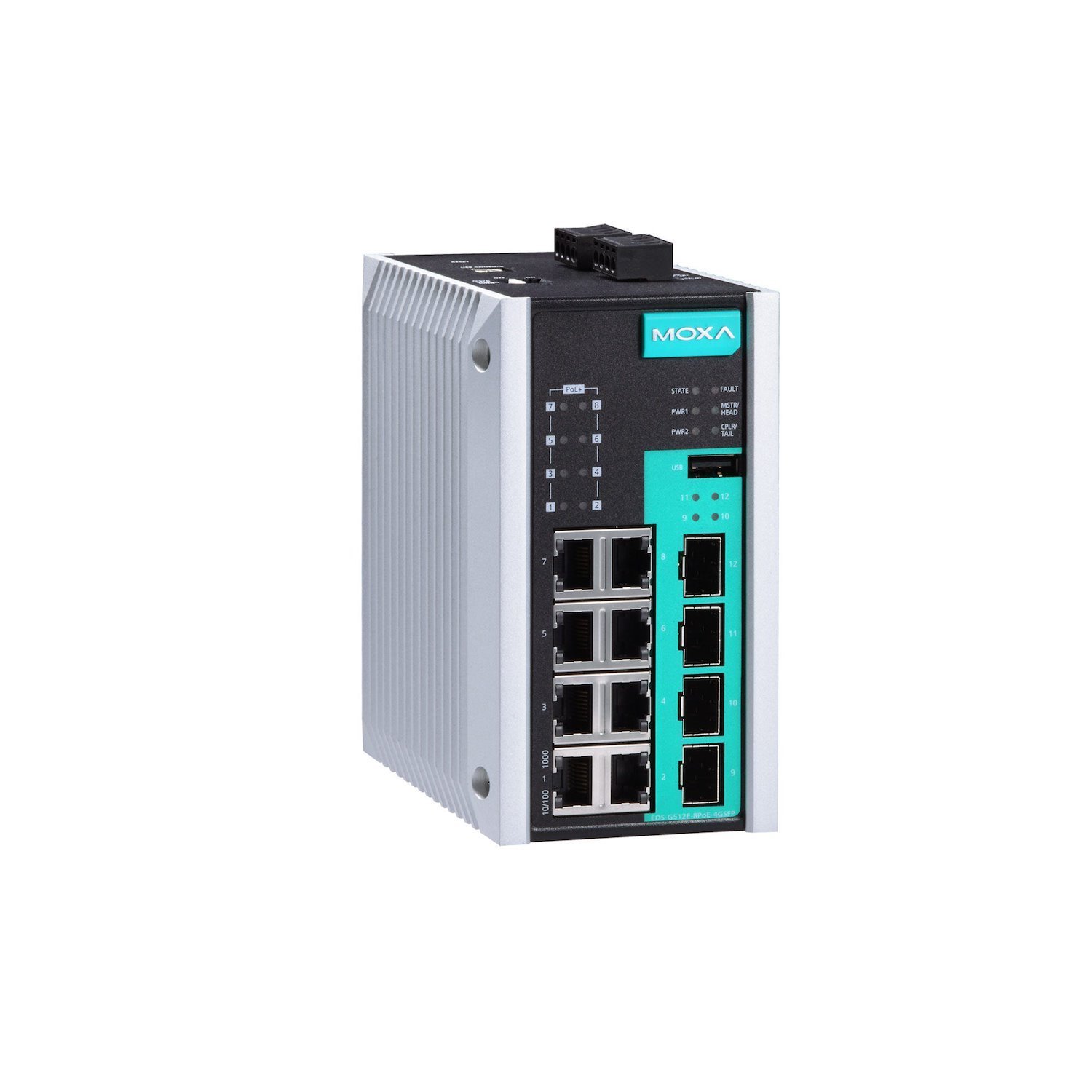

Upgrade your industrial network with the Moxa EDS-G512E-8PoE-4GSFP, a high-performance full Gigabit managed Ethernet switch designed for demanding applications. It features a versatile combination of 8 Gigabit PoE+ ports and 4 Gigabit SFP slots, making it perfect for creating a new high-speed backbone or expanding an existing network. The robust PoE+ capability delivers up to 36W per port, with a total power budget of 240W, ideal for powering high-bandwidth devices like surveillance cameras and wireless access points directly through the network cable.
Engineered for maximum uptime, this switch incorporates advanced redundancy technologies such as Moxa's Turbo Ring and Turbo Chain, ensuring network recovery in less than 50 milliseconds. This high availability is critical for process monitoring, ITS, and DCS systems where network interruptions are not an option. It also supports standard RSTP/STP and MSTP for seamless integration into diverse network infrastructures.
Security is paramount in modern industrial networks, and the EDS-G512E-8PoE-4GSFP delivers with a comprehensive suite of security features. It supports RADIUS, TACACS+, IEEE 802.1X, MAC ACL, HTTPS, and SSH to enforce strict access control and protect your critical data. This ensures your network remains secure from unauthorised access and potential threats.
Designed specifically for industrial environments, the switch supports key industrial protocols like EtherNet/IP, PROFINET, and Modbus TCP for simplified device management and monitoring within your SCADA systems. Housed in a rugged IP30-rated metal enclosure and capable of operating in temperatures from -10 to 60°C, this switch provides reliable performance in the toughest conditions.
FEATURES
- 8 x 10/100/1000BaseT(X) ports with IEEE 802.3af/at PoE+
- 4 x 100/1000BaseSFP slots for flexible fibre optic connectivity
- Up to 36W power output per PoE+ port with a 240W total power budget
- Advanced redundancy with Turbo Ring & Turbo Chain (<50ms recovery)
- Supports EtherNet/IP, PROFINET, and Modbus TCP industrial protocols
- Robust security with IEEE 802.1X, HTTPS, SSH, and RADIUS
- IP30 rated metal housing for industrial durability
- -10 to 60°C standard operating temperature range
SPECIFICATIONS
- PoE Ports: 8
- SFP Slots: 4
- PoE Standard: IEEE 802.3af/at
- Max. PoE Power/Port: 36W
- Total PoE Power Budget: 240W
- Input Voltage: 48VDC (44 to 57VDC)
- MAC Table Size: 8K
- Packet Buffer Size: 4Mbits
- Jumbo Frame Size: 9.6KB
- Housing: Metal
- IP Rating: IP30
- Dimensions: 79.2 x 135 x 137mm
- Weight: 1540g
- Installation: DIN-rail, Wall mounting (with optional kit)
- Operating Temperature: -10 to 60°C
- Redundancy Protocols: Turbo Ring v1/v2, Turbo Chain, STP, RSTP, MSTP
- Security: HTTPS/SSL, MAB authentication, MAC ACL, RADIUS, SSH, SNMPv3, TACACS+
- Industrial Protocols: EtherNet/IP, Modbus TCP, PROFINET IO Device
WARRANTY
5-Year Limited Warranty
