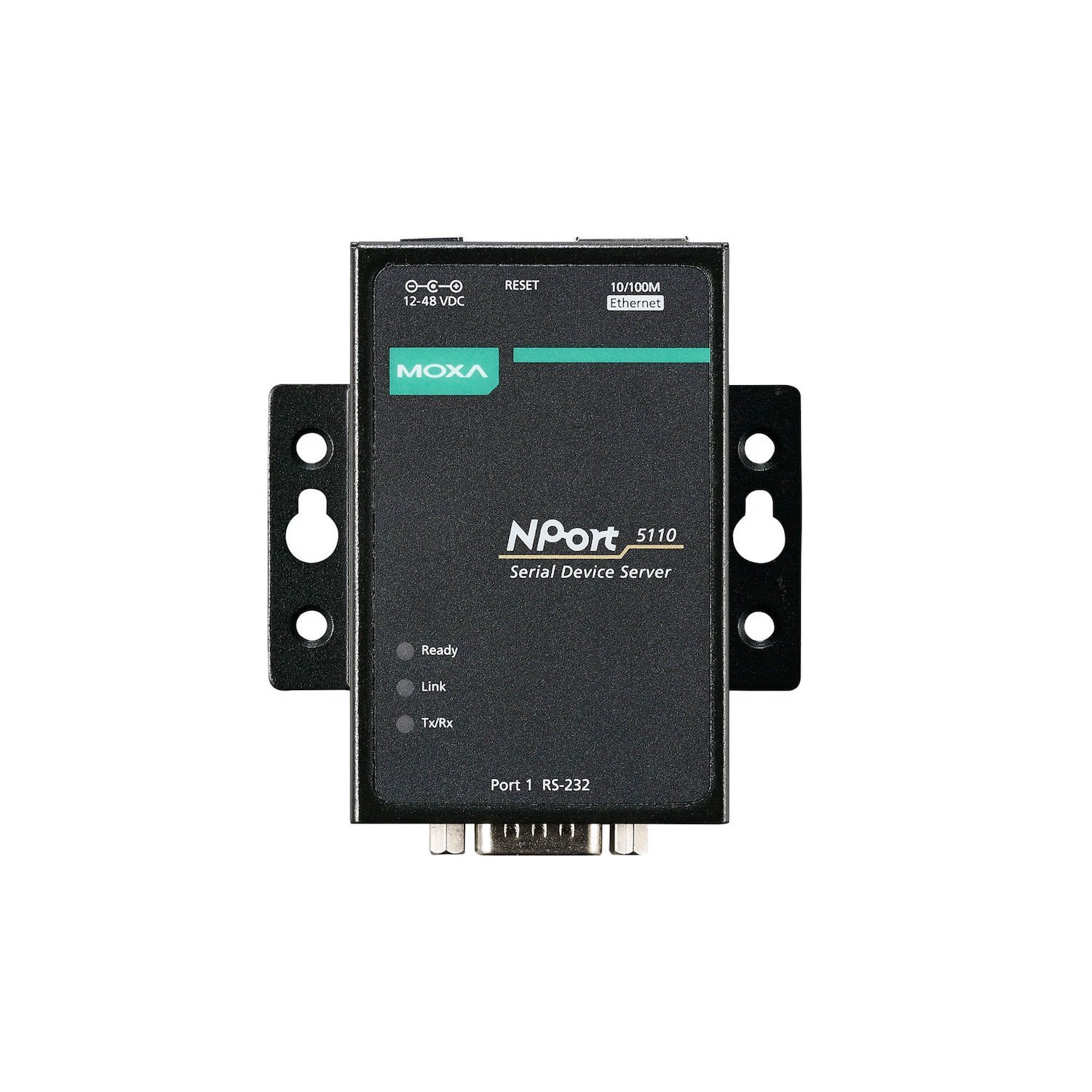

The Moxa NPort 5110 is a compact and cost-effective 1-port serial device server designed to make your RS-232 serial devices network-ready in an instant. Its small size makes it the perfect solution for connecting legacy equipment such as card readers, payment terminals, and industrial machinery to an IP-based Ethernet LAN, allowing your PC software to access them from anywhere on the network.
Preserve your existing software investment with Moxa's Real COM/TTY drivers. These drivers, provided for Windows, Linux, and macOS, allow your software to communicate seamlessly with your serial devices over a TCP/IP network as if they were connected to a physical COM port. This eliminates the need for complex and costly software modifications, ensuring a smooth and efficient integration process.
Offering exceptional flexibility, the NPort 5110 can be configured for a wide range of operation modes, including TCP Server, TCP Client, UDP Server/Client, and Pair Connection, ensuring compatibility with software based on standard network APIs. Configuration is made simple through an intuitive web browser console, Telnet, or the user-friendly Windows utility, giving you complete control over your setup.
Built for reliability, the NPort 5110 features a durable metal housing and supports SNMP for easy network management and monitoring. The device can also be configured to send automatic email alerts when user-defined errors occur, simplifying troubleshooting and maximising uptime. Backed by an industry-leading 5-year warranty, the NPort 5110 is the ideal choice for dependable serial-to-Ethernet connectivity.
FEATURES
- Compact size for easy installation in tight spaces
- Real COM and TTY drivers for Windows, Linux, and macOS
- Standard TCP/IP interface with versatile operation modes
- Easy configuration using a web browser, Telnet, or Windows utility
- SNMP MIB-II support for advanced network management
- Automatic email alerts for quick and easy troubleshooting
SPECIFICATIONS
- Ethernet Ports: 1x 10/100BaseT(X) RJ45
- Magnetic Isolation Protection: 1.5kV (built-in)
- Serial Ports: 1x RS-232 (DB9 Male Connector)
- Serial Standards: RS-232
- Baudrate: 110bps to 230.4kbps
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: RTS/CTS, DTR/DSR, XON/XOFF
- Serial Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Input Voltage: 12 to 48VDC
- Input Current: 128.7mA @ 12VDC
- Housing: Metal
- Dimensions (without ears): 52 x 80 x 22mm
- Weight: 340g
- Operating Temperature: 0 to 55°C
- MTBF: 3,126,448 hrs
WARRANTY
5-Year Limited Warranty
