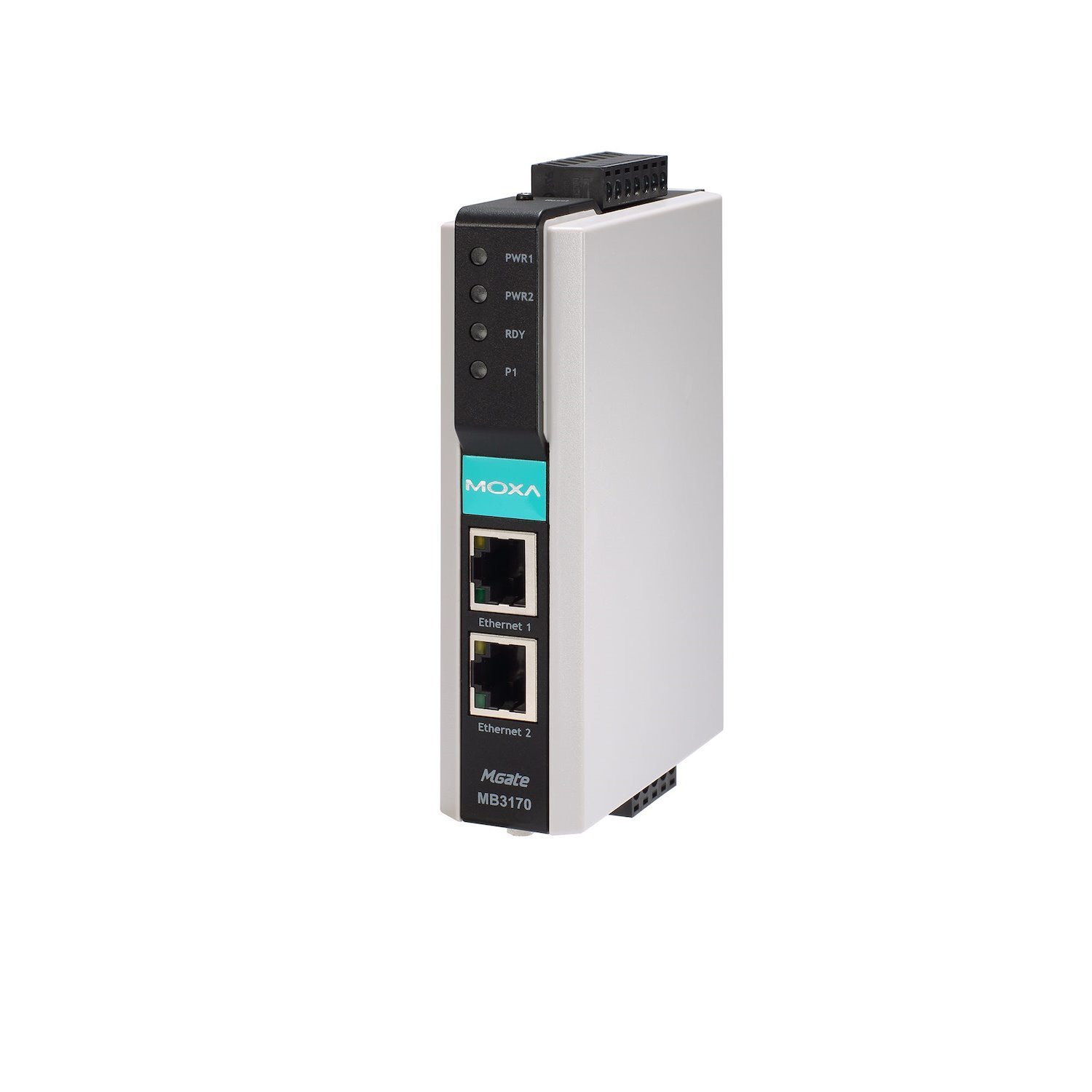

The Moxa MGate MB3170 is a high-performance, industrial-grade Modbus gateway designed to seamlessly integrate Modbus TCP and Modbus RTU/ASCII networks. Engineered for reliability in demanding environments, this gateway provides a straightforward solution for connecting legacy serial devices to a modern Ethernet-based network. Its ability to handle multiple masters and slaves simultaneously makes it a versatile choice for complex industrial automation, SCADA systems, and factory automation, ensuring smooth and efficient data communication between all your critical devices.
Configuration and management are simplified through an intuitive web-based interface, allowing for rapid deployment and easy troubleshooting without the need for complex programming. For advanced users, it offers powerful diagnostic tools, including traffic monitoring, which helps in identifying and resolving communication issues quickly. The device’s intelligent control features, such as priority settings for urgent commands, ensure that critical data is processed without delay, enhancing the responsiveness and efficiency of your entire system.
Built to last, the MGate MB3170 features a rugged metal housing and a fanless design suitable for a wide range of operating temperatures. To guarantee maximum uptime in critical applications, it is equipped with dual redundant DC power inputs, ensuring continuous operation even if one power source fails. The serial port is also protected with 15kV ESD, safeguarding the device against electrical disturbances common in industrial settings, making it a truly robust and dependable networking solution.
FEATURES
- Effortless Modbus TCP to Modbus RTU/ASCII protocol conversion
- Supports up to 32 simultaneous TCP masters/clients
- Supports up to 16 simultaneous TCP slaves/servers
- Manages up to 31 serial slaves per serial port
- Intuitive configuration via web browser
- Built-in traffic monitoring for easy troubleshooting
- Priority control for urgent commands
- Dual 12 to 48VDC redundant power inputs
- 15kV ESD protection for the serial port
- Rugged, fanless metal housing with DIN-rail mounting
SPECIFICATIONS
- Ethernet Port: 1 x 10/100BaseT(X) RJ45
- Serial Port: 1 x RS-232/422/485 (DB9 Male)
- Modbus Modes: TCP Master/Client, TCP Slave/Server, RTU/ASCII Master, RTU/ASCII Slave
- Power Input: 12 to 48VDC (Dual Inputs via Terminal Block)
- Power Consumption: 103mA @ 12VDC
- Housing: Metal, IP30
- Dimensions: 29 x 89.2 x 118.5mm
- Weight: 240g
- Installation: DIN-rail, Wall mounting (optional kit)
- Operating Temperature: -10 to 60°C
- Storage Temperature: -40 to 85°C
- Relative Humidity: 5 to 95% (non-condensing)
- Certifications: CE, FCC, UL
WARRANTY
5-Year Limited Warranty
