- General Information
- Manufacturer
- Kingston Technology Company
- Manufacturer Website Address
- http://www.kingston.com
- Brand Name
- Kingston
- Product Line
- FURY Beast
- Product Type
- RAM Module

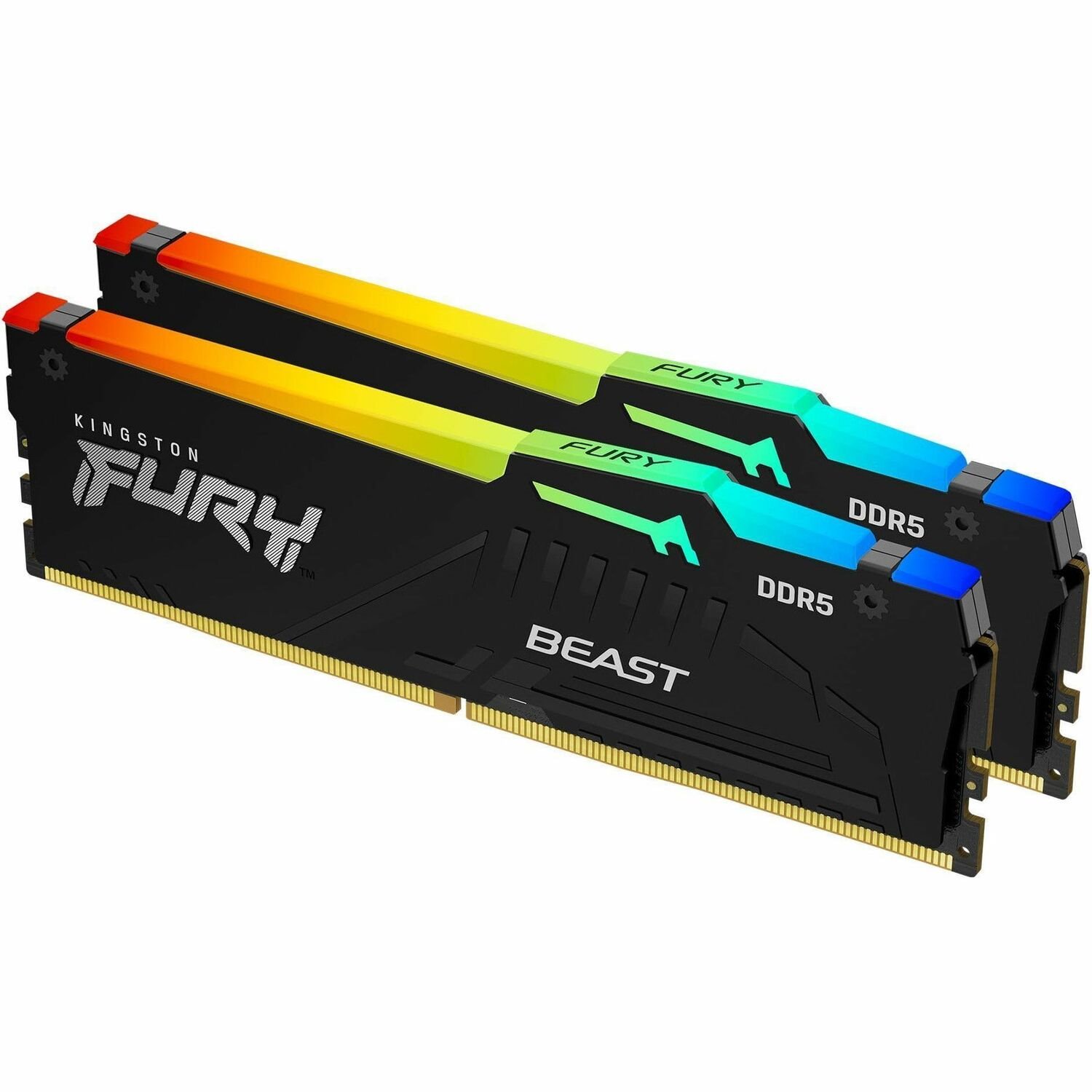

Kingston FURY KF564C32BBEAK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-6400 CL32 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-6400 at a low latency timing of 32-39-39 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
- Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
- EXPO Profile #0: DDR5-6400 CL32-39-39 @1.4V
- EXPO Profile #1: DDR5-6000 CL30-36-36 @1.4V
- XMP Profile #1: DDR5-6400 CL32-39-39 @1.4V
- XMP Profile #2: DDR5-6000 CL30-36-36 @1.4V
FEATURES
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- Height 1.66" (42.23mm), w/heatsink
- Technical Information
- Memory Size
- 64 GB
- Memory Technology
- DDR5 SDRAM
- Memory Voltage
- 1.40 V
- Number of Modules
- 2 x 32GB
- Memory Speed
- 6400 MHz
- Memory Standard
- DDR5-6400/PC5-51200
- Memory Rank
- Dual-rank
- Error Checking
- Non-ECC
- Signal Processing
- Unbuffered
- CAS Latency
- CL32
- RGB
- Yes
- Physical Characteristics
- Number of Pins
- 288-pin
- Form Factor
- DIMM
- Thickness
- 7.1 mm
- Width
- 42.2 mm
- Length
- 133.4 mm
