- General Information
- Manufacturer
- In Win Development, Inc
- Manufacturer Website Address
- http://www.in-win.com.tw/Corporate/zh/
- Brand Name
- In Win
- Product Series
- MR
- Packaged Quantity
- 3
- Product Type
- Cooling Fan/Radiator/Water Block/Pump

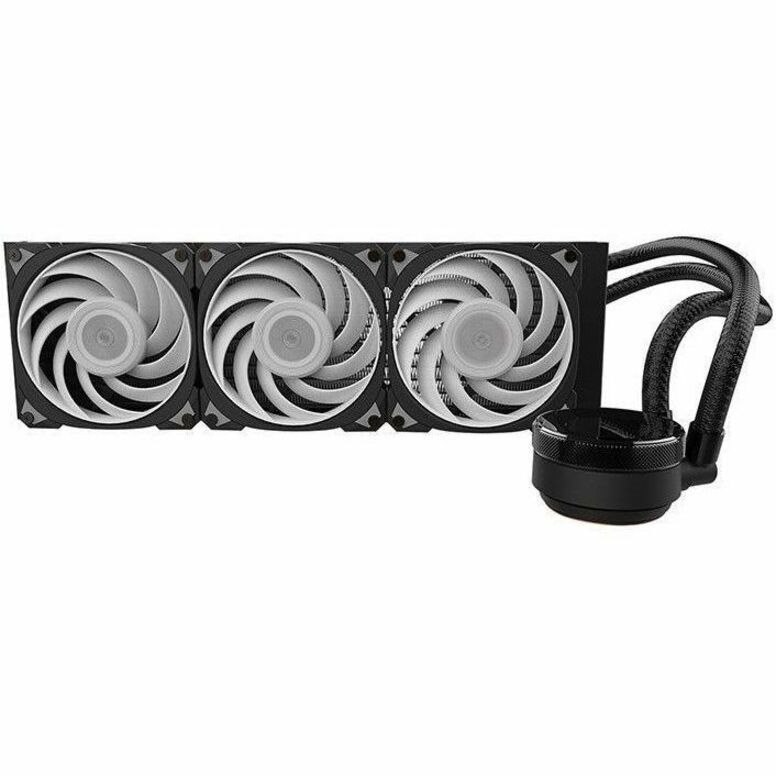

Rotatable CPU Blockhead
The MR Series features an aluminium rotatable CPU blockhead that's accented with an alluring ARGB ring. The blockhead can rotate a full 360 degrees to match your build.
Silent Static Pressure Neptune AN120 Fans
The MR Series is armed with the Neptune AN120 fans. These fans offer excellent cooling performance without sacrificing your peaceful area.
FIN-Tastic Heat Dissipation
The high-density microchannel fins and a large radiator heat dissipation area enhances heat conducting efficiency.
Radiator Mounted Pump Design
The pump is mounted into the radiator to suppress noise pollution and reduce vibrations. The high-speed pump quickly returns the liquid back into the cooling loop.
Supports Latest CPU Sockets
The modular, tool-free mounting brackets are designed for simple installation on all the latest CPU sockets, and includes LGA 1700 and AM5.
- Warranty
- Limited Warranty
- 3 Year
- Fan Information
- Number of Fans
- 3
- Fan Bearing Type
- Long Life Sleeve Bearing
- Fan Speed (Min)
- 900 rpm
- Fan Speed (Max)
- 2200 rpm
- Minimum Airflow
- 40.56m³/h
- Maximum Airflow
- 102.11m³/h
- Noise Levels (A-Weighted)
- 20.5 dB(A)
- LED Color
- ARGB
- Maximum Air Pressure
- 2.27mmH2O
- Heatsink Information
- Cooler Type
- Liquid Cooler
- Compatible Intel Socket
- LGA-115X
- LGA-1200
- H4 LGA-1151
- Compatible AMD Socket
- AM5
- AM4
- Interfaces/Ports
- Connectors
- 4-Pin (12V, PWM)
- 3-Pin (5V, ARGB)
- Physical Characteristics
- Radiator Material
- Aluminium
- Material Details
- Tube Material: Rubber with Nylon Braided Sleeve
- Water Block Materials: Aluminium, Copper, Plastic
- Maximum Fan Diameter
- 120 mm
- Radiator Height
- 27 mm
- Radiator Width
- 120 mm
- Fan Height
- 25 mm
- Fan Width
- 120 mm
- Water Block Height
- 39 mm
- Water Block Width
- 68 mm
- Weight (Approximate)
- 1.70 kg
- Miscellaneous
- Package Contents
- IW-LC-MR36 Cooling Fan/Radiator/Water Block/Pump
- Premium Steel INTEL/AMD Brackets
- Backplate
- Application/Usage
- CPU
- Processor
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
