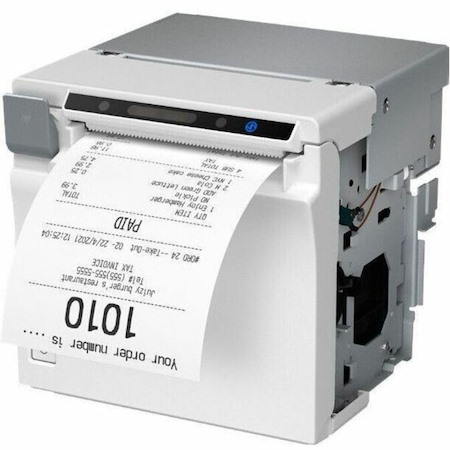

Self-Ordering and Self-Checkout Kiosk Thermal Receipt Printer.
Compact and kiosk friendly - thermal receipt printer with easy mounting kit provides effortless kiosk integration and serviceability
Remote monitoring support - provides printer fleet management and minimizes downtime in kiosk deployments
New bezel for efficient kiosk integration - optional bezel with LED indicators aids in better paper path alignment and paper jam prevention Easy troubleshooting - illuminated attention and error status LED alerts help with speedy error resolutions in the field
Secure access - security features like restricted front cover access and button cover options prevent unauthorized access to the printer
High printer reliability - 150 km printhead life and auto cutter life of 1.5 million cuts
Fast receipt printing - print speed up to 250 mm/sec
Paper-saving functions - reduce paper usage by up to 30%
- General Information
- Manufacturer
- Epson Corporation
- Manufacturer Website Address
- http://www.epson.com.au
- Brand Name
- Epson
- Product Type
- Direct Thermal Printer
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Recommended Use
- Receipt Print
- Print Color Capability
- Monochrome
- Maximum Mono Print Speed
- 250 mm/s
- Maximum Print Resolution (dpi)
- 203
- Barcode Symbology Supported
- UPC-A
- UPC-E
- ITF
- EAN-8 (JAN8)
- Code 39
- Code 93
- Code 128
- Codabar (NW-7)
- GS1-128
- GS1 DataBar
- Aztec Code
- QR Code
- PDF417
- Composite Symbology
- Data Matrix
- Maxi Code
- GS1-128 Composite
- Features
- Auto-cutter
- Mean Time Between Failures (MTBF)
- 41.1 Year
- Mean Cycles Between Failures (MCBF)
- 65000000
- Character Sets
- 95 Alphanumeric
- 18 International
- 128 x 43 Graphic
- Print Head Life
- 150km
- Print Technology
- Direct Thermal
- Interfaces/Ports
- Serial Port
- Yes
- USB Host
- Yes
- USB
- Yes
- Cutter
- Cutter
- Yes
- Cutting Method
- Automatic
- Cutter Life
- 1500000 Cuts
- Media Types & Handling
- Media Type
- Receipt
- Media Sensor
- Paper Near End Sensor
- Media Thickness
- 80 µm
- Maximum Roll Diameter
- 83 mm
- Maximum Label Width
- 80 mm
- Power Description
- Power Source
- Power Adapter
- Frequency
- 50 Hz
- 60 Hz
- Environmental Conditions
- Operating Temperature
- 5°C - 45°C
- Operating Relative Humidity
- 10% - 90%
- Physical Characteristics
- Color Family
- White
- Product Color
- White
- Height
- 127 mm
- Width
- 127 mm
- Depth
- 131.2 mm
- Weight (Approximate)
- 1.30 kg
- Miscellaneous
- Package Contents
- EU-m30 Kiosk Thermal Receipt Printer
- Thermal Roll Paper (Starter Roll for Testing)
- Power Switch and Power/Feed Switch Covers
- Roll Paper Guides for 58 mm Paper
- Small Cover Open Lever
- 1 x Spare Screw
- 2 x Equipment Mounting Brackets
- Product Fixing Brackets
- 2 x Screws + 1 Spare (Total of 3 Screws)
- Platform Supported
- PC
- Noise Level
- 60 dB
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
