D-Link Expansion Module - 1 x LC 10GBase-SR Network

  • Part: 1249679
  • Model: DEM-421XT
$1,599.40
FREE DELIVERY

Availability

Out of Stock

  • General Information
    • Manufacturer
    • D-Link Systems, Inc
    • Manufacturer Website Address
    • http://www.dlink.com.au
    • Brand Name
    • D-Link
    • Product Type
    • Expansion Module

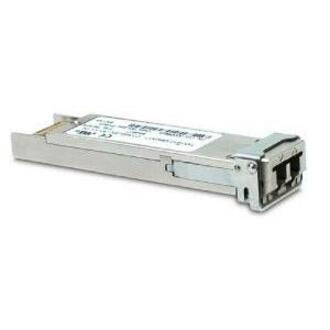

Designed to support distances up to 300 meters, the DEM-421XT is a high performance 850nm Multi-Mode XFP transceiver. Supporting Full-duplex, 10Gigabit speeds on Multi-Mode fiber cables.The DEM-421XT provides the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa. The DEM-421XT is hot swappable. You can remove or replace the transceiver with the system powered on. This permits modules and transceivers to be added or swapped without interrupting network systems.

  • Warranty
    • Limited Warranty
    • 2 Year

  • Technical Information
    • Application/Usage
    • Data Networking
    • Optical Network
  • Interfaces/Ports
    • Total Number of Ports
    • 1
    • Connector Type
    • LC
    • Interfaces/Ports Details
    • 1 x LC 10GBase-SR Network
  • Media & Performance
    • Media Type Supported
    • Optical Fiber
    • Fiber Mode Supported
    • Multi-mode
    • Ethernet Technology
    • 10 Gigabit Ethernet
    • Network Technology
    • 10GBase-SR
    • Maximum Distance Supported
    • 300 m
    • Maximum Data Transfer Rate
    • 10
  • Physical Characteristics
    • Form Factor
    • Hot-swappable
    • Height
    • 12.4 mm
    • Width
    • 18.3 mm
    • Depth
    • 71.1 mm
  • Miscellaneous
    • Additional Information
      • Wavelength: 50nm Multimode
      • Supports Full-Duplex 802.3x Flow Control
      • 15kV air discharge and 8 kV contact discharge to the faceplate

      Cabling Specifications:

      • 62.5 microns: Modal Bandwidth: 160 MHz/km, 26 meters
      • 62.5 microns: Modal Bandwidth: 200 MHz/km, 33 meters
      • 50.0 microns: Modal Bandwidth: 400 MHz/km, 66 meters
      • 50.0 microns: Modal Bandwidth: 500 MHz/km, 82 meters
      • 50.0 microns: Modal Bandwidth: 2000 MHz/km, 300 meters
    • Compatibility
      • xStack 48-Port 10/100/1000 Switch+ 4 combo SFP + 2 10GbE ports (DXS-3350SR)
      • D-Link xStack 24-SFP Slot L3 MNGD Switch, 10- Gig Uplinks (DXS-3326GSR)
