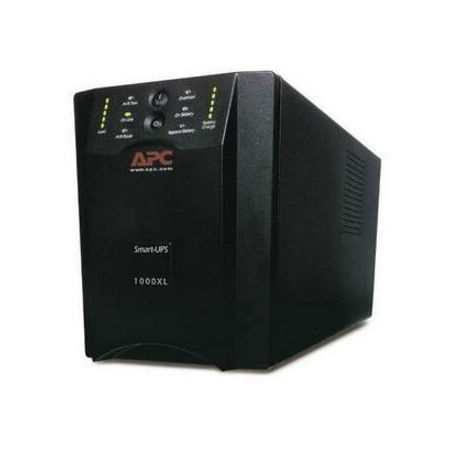

The APC Smart-UPS XL provides intelligent and efficient network power protection. It has a power rating of 1000VA and an output power capacity of 800 watts. The UPS operates with a nominal input and output voltage of 230V and includes features like USB and serial connectivity.
- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com.au
- Brand Name
- APC by Schneider Electric
- Product Line
- Smart-UPS
- Product Series
- XL
- Product Type
- Line-interactive UPS
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Plug/Connector Type
- IEC 320-C14
- Receptacle Type
- IEC 320-C14
- Receptacle Detail
- 2 x IEC Jumper
- 8 x IEC 320-C13
- Bypass Switch
- Not Provided
- Emergency Power OFF
- Optional
- Cord Length
- 1.83 m
- Power Description
- Load Capacity (VA)
- 1 kVA
- Load Capacity (Watt)
- 800 W
- Input Voltage
- 230 V
- Output Voltage
- 240 V AC
- Waveform Type
- Sine Wave
- Surge Energy Rating
- 320 J
- Management
- Alarm
- Low Battery
- On Battery
- Configurable Delay
- Battery Management
- Intelligent Battery Management
- Controls/Indicators
- Status Indicators
LED status display with:
- Load bar-graphs
- Battery bar-graphs
- On Line
- On Battery
- Replace Battery
- Overload
- Interfaces/Ports
- Serial Port
- Yes
- USB
- Yes
- Total Number of Expansion Slots
- 1
- Battery Information
- Battery Characteristics
- Spill-proof, Maintenance-free
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 9.70 Minute
- Backup/Run Time (Half Load)
- 33.90 Minute
- Hot Swappable
- Yes
- Environmental Conditions
- Maximum Operating Temperature
- 45°C
- Thermal Dissipation
- 120 BTU/h
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 216 mm
- Width
- 170 mm
- Depth
- 439 mm
- Rack Height
- 0U
- Form Factor
- Tower
- Mounting Preference
- No Preference
- Mounting Location
- Front
- Weight (Approximate)
- 27.27 kg
- Miscellaneous
- For Country/Region
- United States
- Package Contents
- Smart-UPS XL 1000VA Tower
- CD with software
- Smart UPS signaling RS-232 cable
- USB cable
- User Manual
- Additional Information
- Output Voltage Distortion: Less than 5% at full load
- Crest Factor: Up to 5 : 1
- Replacement battery cartridge quantity: 1
- Automatic restart of loads after UPS shutdown
- Automatic Voltage Regulation (AVR)
- Generator compatible
- Power conditioning
- Certifications & Standards
- C-tick
- CE
- EN 50091-1
- EN 50091-2
- GOST
- PCBC
- VDE
- UL 1449
- Software Included
- PowerChute management software
- Optimized Energy Efficiency
- Yes
- Product Take Back Program
- Yes
- Mercury Free
- Yes
- RoHS Exemption Information
- https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SUA1000XLI_ROHS_DECLARATION&p_FileName=SUA1000XLIKIT_ROHS_DECLARATION_US.pdf
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=765382&lang=en-us
- EU RoHS Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=765382&lang=en-us
- Environmental Profile Availability
- https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN
- End of Life Manual Availability
- https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN
- REACH free of SVHC
- No
- WEEE Statement
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
